Ceramic fiber castable

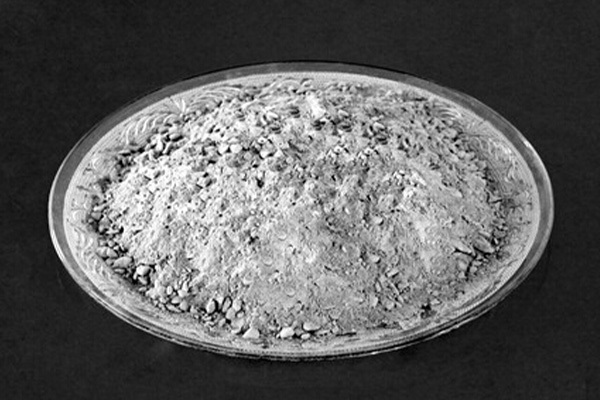

Ceramic fiber castable, this product is a kind of clay-like indeterminate refractory material, which is made of blown fiber cotton with low slag ball content as aggregate, with a certain proportion of binder, refractory filler and additives. It has the characteristics of low bulk density, low heat capacity, low thermal conductivity, high strength, and good air tightness. It is widely used in the lining of medium and low temperature thermal equipment and movable furnace covers. a good thermal insulation material. The product has good construction workability and strong integrity of the furnace wall after construction, and is especially suitable for wall linings with complex shapes.
Key words：
Category：
Product Description
Product Description：
◎Ceramic fiber castable, this product is a kind of clay-like indeterminate refractory material. It is made of blown fiber cotton with low slag ball content as aggregate, with a certain proportion of binder, refractory filler and additives. It has the characteristics of low bulk density, low heat capacity, low thermal conductivity, high strength, and good air tightness. It is widely used in the lining of medium and low temperature thermal equipment and movable furnace covers. a good thermal insulation material. The product has good construction workability and strong integrity of the furnace wall after construction, and is especially suitable for wall linings with complex shapes.
|
Product Category： ◎ 1260 Fiber Castable HZGX-297
Product Features： ◎Low heat capacity |
 |
Typical application：
◎Insulation layer for industrial kiln wall lining or high temperature industrial kiln backing. Including melting furnace, tunnel firing kiln,
Rolling soaking furnace, continuous heating furnace, heat treatment annealing furnace, pit furnace, bell furnace
◎Steel drum lid electric heating furnace door, observation hole, burning brick
Technical indicators：
| Product name | Ceramic fiber castable | ||||
| Product Code |
|
HZGS-297 |
HZGS-397 |
HZGS-497 |
HZGS-597 |
| Maximum use temperature |
|
1050 |
1150 |
1250 |
1350 |
| long-term use temperature |
|
1000 |
1100 |
1200 |
1300 |
|
Chemical composition（%） |
AL2O3 |
≥ 30 |
≥ 35 |
≥ 40 |
≥ 40 |
|
SiO2 |
≥ 30 |
≥ 40 |
≥ 35 |
≥ 35 |
|
|
Bulk density |
Wet state |
1150-1250 |
1150-1250 |
1250-1350 |
1250-1350 |
|
110℃ *24h Dry |
550 |
600 |
600 |
700 |
|
| After burning |
500（1000℃ *3h） |
550（1000*3h） |
550（1200*3h） |
550（1300*3h） |
|
|
Thermal conductivity |
Average temperature 400℃ |
0.115 |
0.118 |
0.150 |
0.171 |
|
Average temperature 600℃ |
0.116 |
0.155 |
0.175 |
0.195 |
|
|
Average temperature 800℃ |
|
0.185 |
0.195 |
0.221 |
|
|
Cold flexural strength（MPa） ≥ |
110℃ *24h After drying |
0.4 |
0.4 |
0.5 |
0.5 |
| After burning |
0.4（1000℃ *3h） |
0.4（1100℃ *3h） |
0.4（1200℃ *3h） |
0.4（1300℃ *3h） |
|
|
Cold compressive strength（MPa） ≥ |
110℃ *24h After drying |
0.5 |
0.5 |
0.6 |
0.6 |
| After burning |
0.4（1000℃ *3h） |
0.5（1100℃ *3h） |
0.5（1200℃ *3h） |
0.6（1300℃ *3h） |
|
|
Heat shrinkage（%）≤ |
3（1000℃ *24h） |
3（1100℃ *24h） |
3（1200℃ *24h） |
3（1300℃ *24h） |
|
|
Initial setting time（min）≥ |
60 |
60 |
60 |
60 |
60 |
|
Demold time（h） |
3-8 |
3-8 |
3-8 |
3-8 |
3-8 |
| Storage period | When not frozen and dried at high temperature: three months | ||||
| Package | Bags, 25 kg / bag | ||||
