Ceramic fiberboard

Ordinary/standard ceramic fiberboard is made by continuous production and advanced technology level production line.

Key words：

ceramic and of backing thermal product insulation fiberboard in

Category：

Product Center

Ceramic fiber product series

Product consultation：

+86-0531-83249209

Product inquiry

Related Products

Product Description

Product Description:

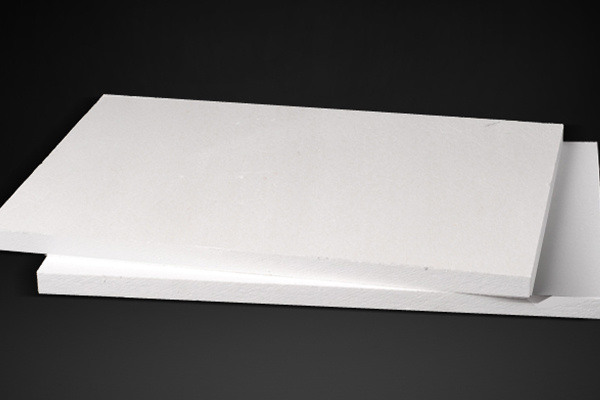

◎Common/standard ceramic fiberboard is made by continuous production and advanced production line.
◎Ordinary/standard ceramic fiberboard has the characteristics of smooth surface, accurate size, good toughness, can be cut arbitrarily, and excellent thermal insulation effect.
◎Common/standard ceramic fiberboard can be widely used in the backing of industrial kilns and the hot surface of low-temperature kilns according to the temperature.

Product Category:
◎Ordinary ceramic fiber board HZGX-164B
◎Standard ceramic fiberboard HZGX-264B
Product Features:
◎Low thermal capacity, low thermal conductivity
◎High compressive strength
◎Non-brittle material, good toughness
◎Accurate size and good flatness
◎Homogeneous structure, easy to machine
◎Easy to install
◎Continuous production, uniform fiber distribution and stable performance
◎Excellent thermal stability and thermal shock resistance

Typical application:
◎Backing thermal insulation of kiln in cement building materials industry
◎Backing insulation of various kilns in the ceramic industry
◎Backing, wall lining and lining insulation of kilns in petrochemical and metallurgical industries
◎Wall lining and backing insulation of glass furnace
◎Backing heat insulation of heat treatment furnace
◎Backing of refractory bricks for electrolytic reduction tanks in aluminum plants
◎High temperature reaction, wall lining and backing material of heating equipment

Technical indicators：

Product name		Ordinary ceramic fiber board	Standard ceramic fiberboard
Product Code		HZGX-164B	HZGX-264B
Heating Permanent Wire Changes（％）		950×24h≤-2.5	1000×24h≤-2
Theoretical thermal conductivity	Hot surface temperature800℃	≤0.116	—
W/(m·k)	Hot surface temperature1000℃	—	≤0.135
Compressive strength（Mpa）		≥0.1	≥0.25
Theoretical density（kg/m3）		220～320	220～320
Moisture content（％）		≤1
Organic content（％）		≤8
Product Specifications（mm）		1200/900×1000/600×10-100mm
Package		Single piece: carton outer plastic seal; large piece: wooden pallet
