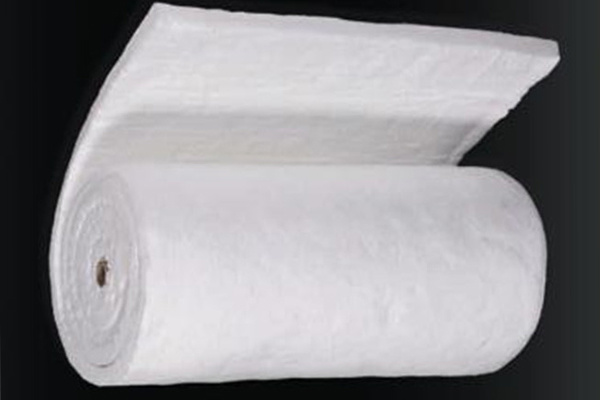

Ceramic fiber blanket

The ceramic fiber blanket is produced continuously. After needle punching, the fibers are evenly interwoven, with high tensile strength, and does not contain any binder.

Key words：

ceramic le ge fiber blanket 24h times and thermal

Category：

Product Center

Ceramic fiber product series

Product consultation：

+86-0531-83249209

Product inquiry

Related Products

Product Description

Product Description:
◎Ceramic fiber blankets are produced continuously. After needle punching, the fibers are evenly interwoven, with high tensile strength and no binding agent.
◎Needle-punched blankets with different bulk densities and thicknesses provide users with a wide range of materials to obtain the best thermal insulation structure and benefits.
◎Ceramic fiber blanket has good resistance to chemical attack (hydrofluoric acid, phosphoric acid and strong alkali Na2O, except K2O).
◎The performance of ceramic fiber blanket is not affected by oil erosion, and its thermal properties and physical properties can be recovered after drying.

Product Category:
◎Ordinary ceramic fiber spinning blanket HZGX-112
◎Standard ceramic fiber spinning blanket HZGX-212
◎High-purity ceramic fiber spinning blanket HZGX-312
◎High Alumina Ceramic Fiber Blown Blanket HZGX-422
◎Zirconium-containing ceramic fiber spinning blanket HZGX-512
◎Low zirconium ceramic fiber spinning blanket HZGX-612

Features:
◎Excellent chemical stability
◎Excellent thermal stability
◎Excellent tensile strength
◎Low heat capacity
◎Low thermal conductivity

Typical application:
◎Industrial kiln wall lining, backing material, kiln masonry expansion joint, furnace door, top cover heat insulation seal
◎Insulation material for high temperature pipeline
◎Module / Folding block processing materials

Technical indicators :

Classification temperature		1050	1260				1400
Product Code		HZGX-112	HZGX-212		HZGX-312		HZGX-422		HZGX-512		HZGX-612
Heating Permanent Wire Changes(%)		950℃×24h	1050℃×24h		1100℃×24h		1200℃×24h		1300℃×24h		1250℃×24h
		≤-3	≤-3		≤-3		≤-3		≤-3		≤-3
Theoretical thermal conductivity	(200℃)	0.045-0.060					0.052-0.070
（W/m.k）	(400℃)	0.085-0.110					0.095-0.120
（128kg/m3）	(600℃)	0.152-0.20					0.164-0.210
Theoretical volume(kg/m3)		96/128					128	96/128
AL2O3（％）		≥42		≥45		≥45	≥52	≥36		43～45
ZrO2（％）								≥15		5~7
AL2O3＋SiO2（％）		≥96		≥97		≥97	≥99	—		≥90
AL2O3＋SiO2＋ZrO2		—		—		—	—	≥99
（％）
Fe2O3（％）		≤1.2		≤1.0		≤1.0	≤0.2	≤0.1
K2O+Na2O（％）		≤0.5		≤0.5		≤0.5	≤0.2	≤0.2
Product Specifications(mm)		3600/7200/15000×610/1220×10/20/25/30/40/50
		（422δ:10/20/25/30）
Tensile strength		≥0.04
（25mmThick）MPa
Package		Inner plastic bag outer woven bag or carton
