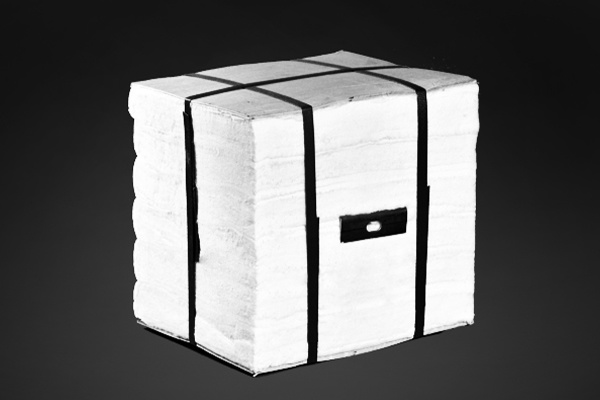

Ceramic fiber folding block

Various ceramic fiber folding blocks are made of ceramic fiber acupuncture blankets of corresponding materials, and are processed on special machinery according to the structure and size of fiber components. In the process of processing, a certain proportion of compression is maintained to ensure that after the lining of the ceramic fiber folded blocks is completed, due to the expansion of each ceramic fiber folded block in different directions, the ceramic fiber folded blocks are extruded into a seamless shape. the whole of the gap.

Key words：

ceramic le fiber ge the of folding block 24h

Category：

Product Center

Ceramic fiber product series

Product consultation：

+86-0531-83249209

Product inquiry

Related Products

Product Description

Product Description：

◎Various ceramic fiber folding blocks are made of ceramic fiber acupuncture blankets of corresponding materials, which are processed on special machinery according to the structure and size of fiber components. In the process of processing, a certain proportion of compression is maintained to ensure that after the lining of the ceramic fiber folded blocks is completed, due to the expansion of each ceramic fiber folded block in different directions, the ceramic fiber folded blocks are extruded into a seamless shape. the whole of the gap.

Product Category：

◎ 1050 ceramic fiber folding block HZGX-189Z
◎ 1260 ceramic fiber folding block HZGX-289Z
◎High-purity ceramic fiber folding block HZGX-389Z
◎High-aluminum ceramic fiber folding block HZGX-489Z
◎Zirconium-containing ceramic fiber folding block HZGX-589Z
◎Low zirconium ceramic fiber folding block HZGX-689Z

Product Features：

◎Excellent chemical stability
◎Excellent thermal stability
◎Excellent elasticity, because the fibers are in a pre-compressed state,
Its expansion can compensate for fiber shrinkage and improve the thermal insulation performance of the fiber lining
◎Low thermal conductivity

Typical application：
◎Linings of various industrial furnaces and heating devices in metallurgy, machinery, building materials, petrochemicals, non-ferrous metals and other industries

Classification temperature		1050	1260				1400
Product Code		HZGX-189Z	HZGX-289Z		HZGX-389Z		HZGX-489Z		HZGX-589Z		HZGX-689Z
Heating Permanent Wire Changes(%)		950℃×24h	1000℃×24h		1100℃×24h		1200℃×24h		1300℃×24h		1250℃×24h
		≤-3	≤-3		≤-3		≤-3		≤-3		≤-3
Theoretical thermal conductivity	(200℃)	0.045-0.060					0.052-0.070
（W/m.k）	(400℃)	0.085-0.110					0.095-0.120
	(600℃)	0.152-0.20					0.164-0.210
Theoretical volume(kg/m³)		96/128					128	96/128
AL₂O₃（％）		≥42		≥45		≥45	≥52	≥36		43～45
ZrO₂（％）								≥15		5~7
AL₂O₃＋SiO₂（％）		≥96		≥97		≥97	≥99	—		≥90
AL₂O₃＋SiO₂＋ZrO₂		—		—		—	—	≥99
（％）
Fe2O3（％）		≤1.2		≤1.0		≤1.0	≤0.2	≤0.1
K2O+Na2O（％）		≤0.5		≤0.5		≤0.5	≤0.2	≤0.2
Product Specifications(mm)		3600/7200/15000×610/1220×10/20/25/30/40/50
		（422δ:10/20/25/30）
Tensile strength		≥0.04
（25mm厚）MPa
Package		Inner plastic bag outer woven bag or carton
